HomeProductsAll-in-one LED Screen

All-in-One · Flat

All-in-one LED Screen

Optional 108″/ 135″/ 163″

Optional P0.9375/P1.25/P1.5625

Optional 108″/ 135″/ 163″ Optional P0.9375/P1.25/P1.5625 Resolution up to 2K/4K

  • Optional 108″/ 135″/ 163″
  • Optional P0.9375/P1.25/P1.5625
  • Resolution up to 2K/4K
  • 16:9 golden ratio adapts to all kinds of content fully
Model
CTV108′ / CTV135′ / CTV163′
Display Dimensions (W*H, mm)
2400×1350 / 3000×1688 / 3…
Cabinet Dimensions (W*H*D, mm)
600mmx337.5mmx31mm
Panel Resolution(P1.25)
1920*1080 / 2400*1350 / 2…
All-in-one LED Screen — Cosmic View

Features

Key Highlights

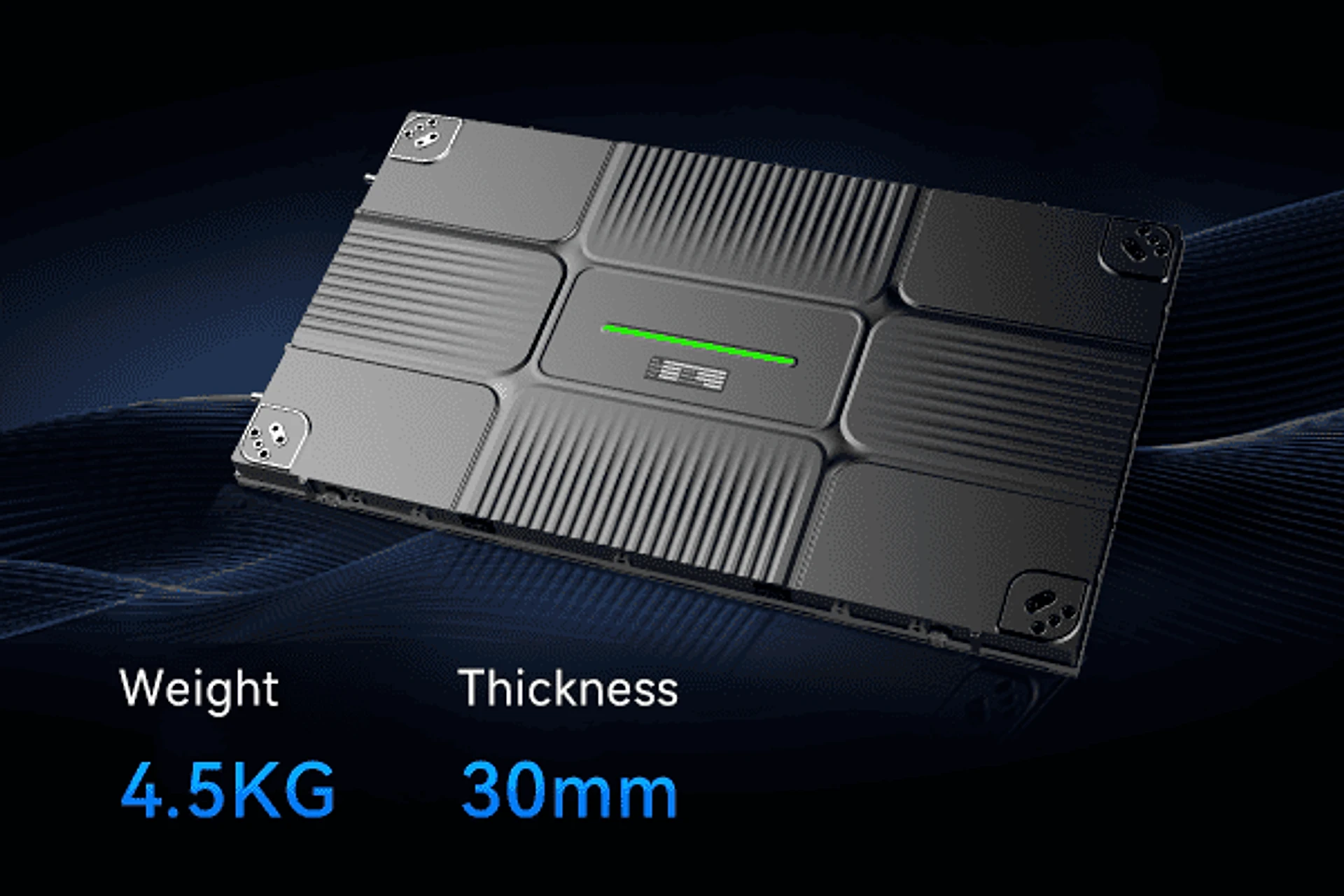

1 All-in-one LED Screen-Ultra-light and ultra-thin.png
All-in-one LED Screen — 1 All-in-one LED Screen-Ultra-light and ultra-thin.png
2 All-in-one LED Screen-22-bit high grayscale.png
All-in-one LED Screen — 2 All-in-one LED Screen-22-bit high grayscale.png

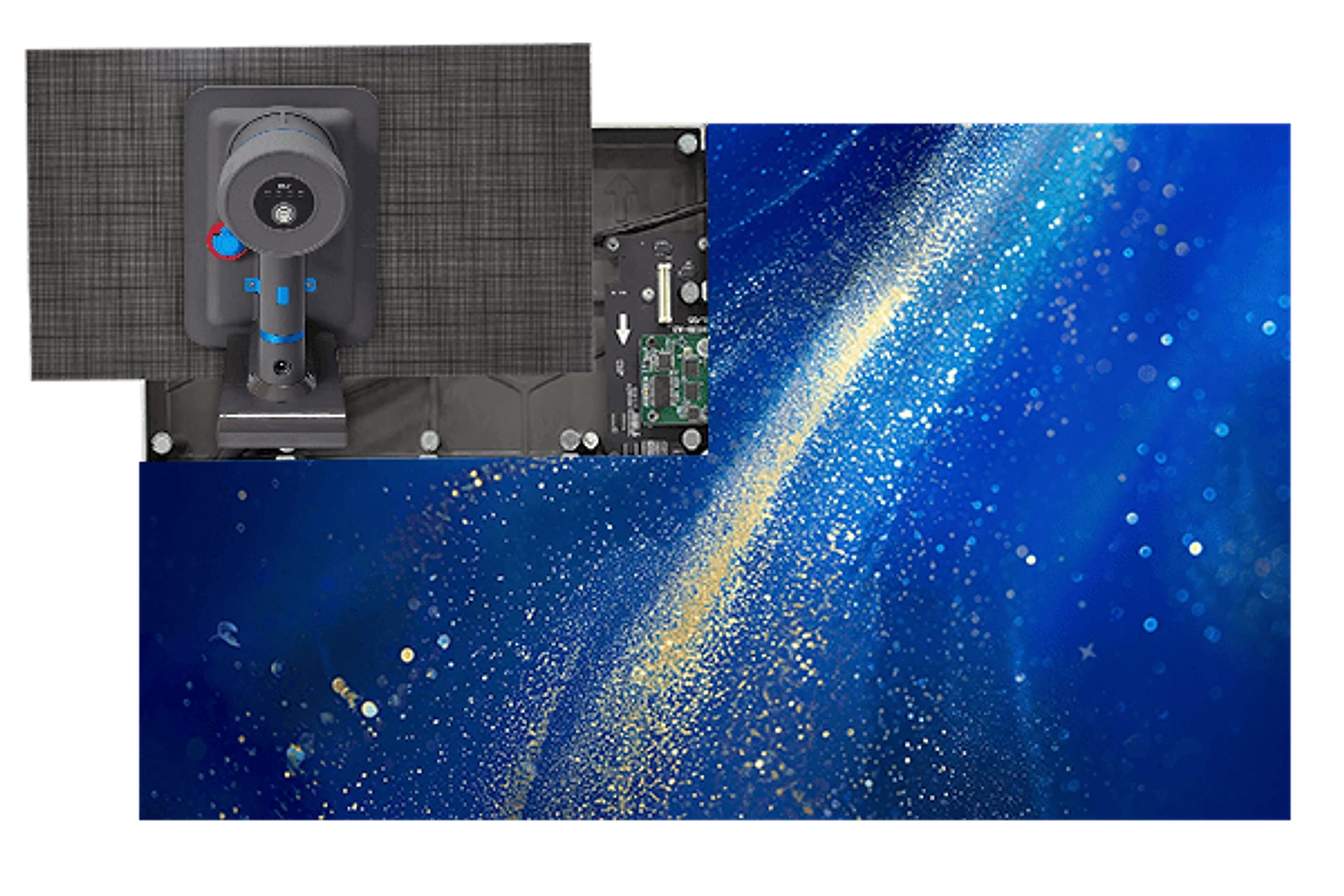

3 All-in-one LED Screen-Front maintenance.png
All-in-one LED Screen — 3 All-in-one LED Screen-Front maintenance.png

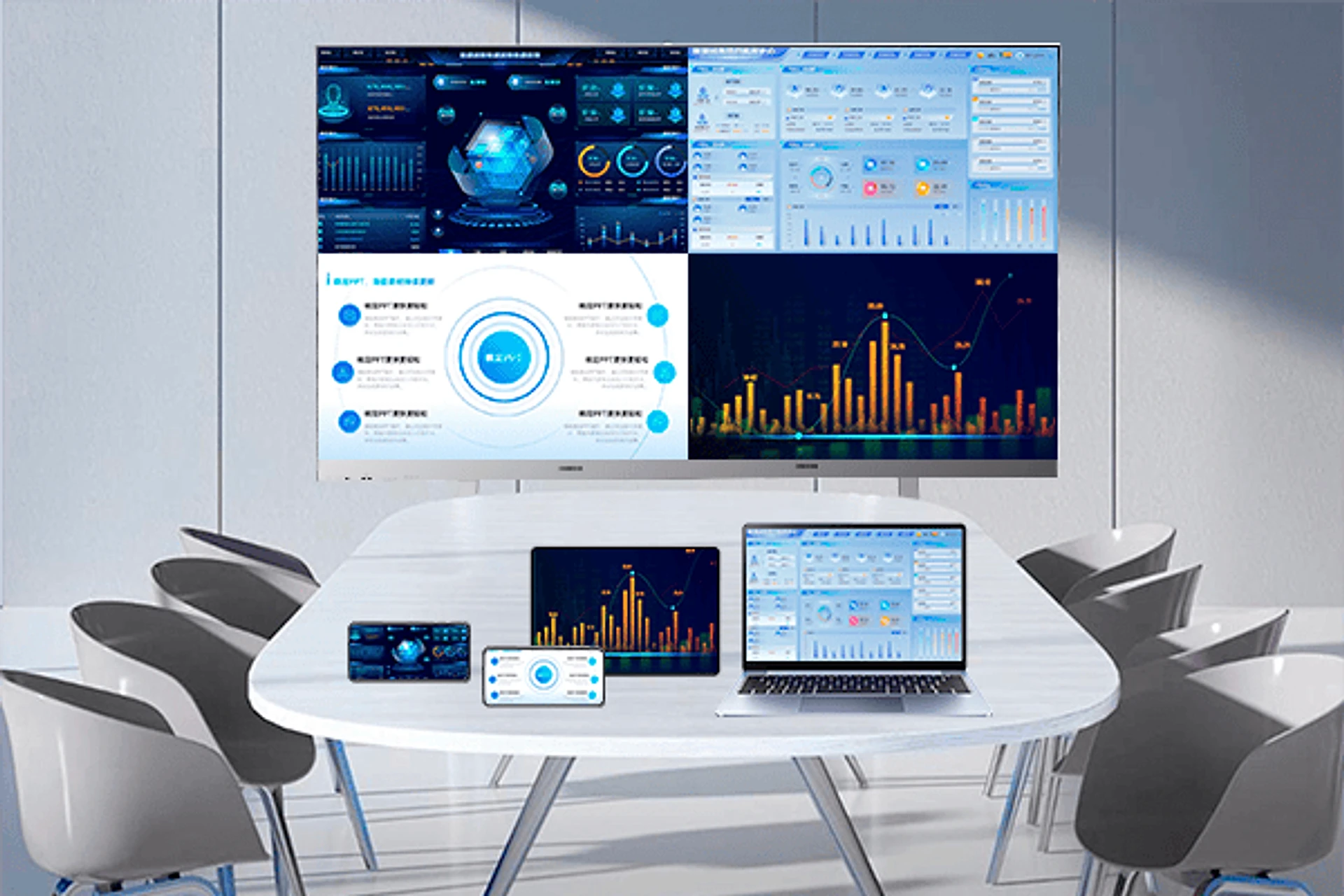

4 All-in-one LED Screen-Support wireless screen projection.png
All-in-one LED Screen — 4 All-in-one LED Screen-Support wireless screen projection.png

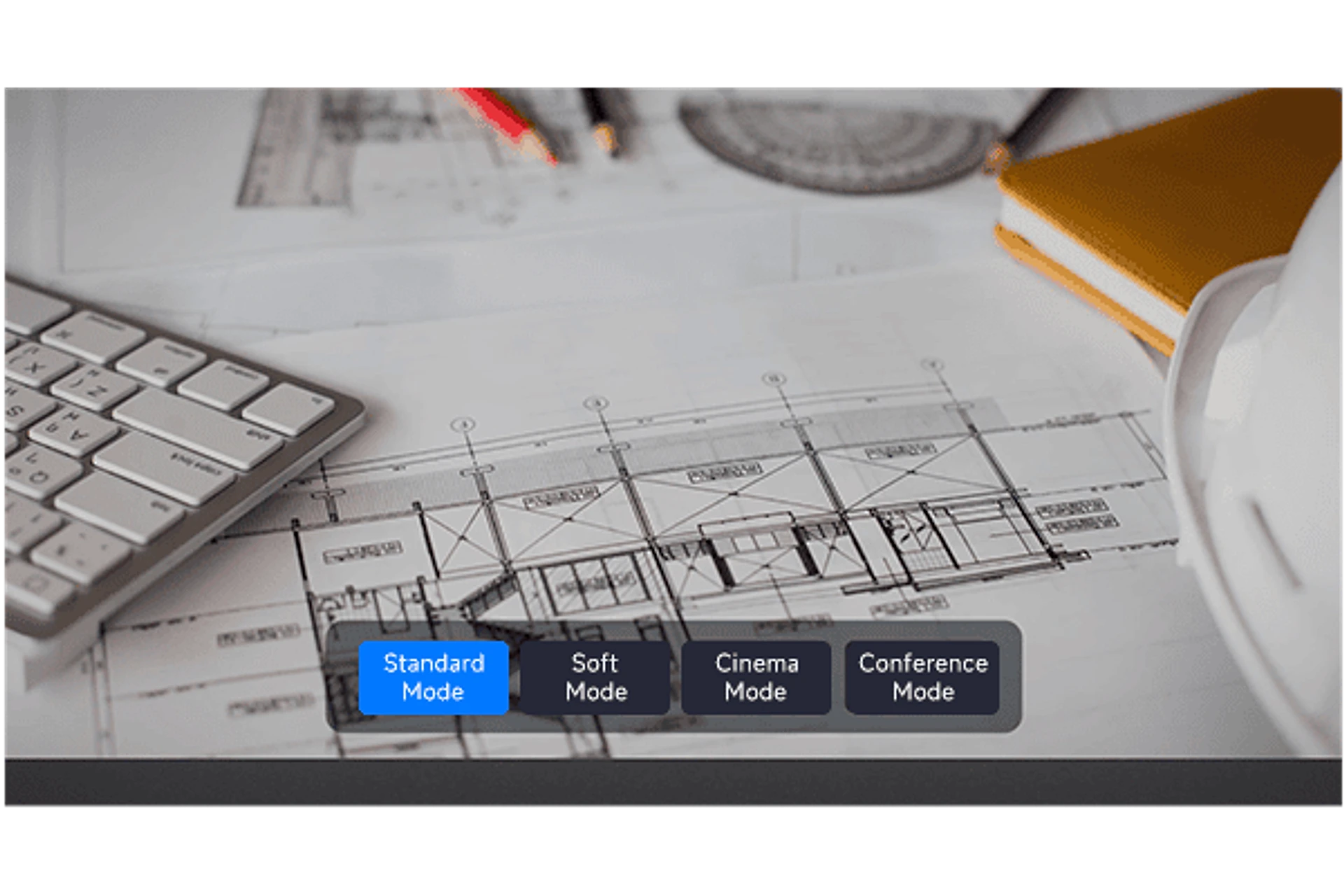

5 All-in-one LED Screen-Multiple modes available.png
All-in-one LED Screen — 5 All-in-one LED Screen-Multiple modes available.png

Application Scenarios

All-in-one LED Screen in Action

Specifications

Technical Specifications

ModelCTV108′ / CTV135′ / CTV163′
Display Dimensions (W*H, mm)2400×1350 / 3000×1688 / 3600×2025
Cabinet Dimensions (W*H*D, mm)600mmx337.5mmx31mm
Panel Resolution(P1.25)1920*1080 / 2400*1350 / 2880*1620
Panel Resolution(P1.5625)1536*864 / 1920*1080 / 2304*1296
Panel Resolution(P1.875)1280*720 / 1600*900 / 1920*1080
Module Size (W*H, mm)300*168.75
Maintenance MethodFront maintenance

Applications

Where All-in-one LED Screen Excels

Meeting RoomsClassroomsHotelsCorporate OfficesControl Centers

Get Started

Ready to Deploy All-in-one LED Screen?

Contact our team for pricing, availability, and a live product demonstration in Delhi.

FAQ

Frequently Asked Questions

For conference rooms and boardrooms viewed from 2–4 m, P1.2–P1.5 is ideal. For lobbies and retail at 4–8 m, P2–P2.5 works well. Larger venues can use P3–P4. A smaller pixel pitch means higher resolution.

Indoor LED displays generally run at 800–1500 nits. Fine-pitch displays like the CVHF operate at 800–1000 nits, which is comfortable for enclosed spaces without causing eye strain.

Yes. Our indoor LED panels are rated for 100,000+ hours of operation. Control systems allow scheduled on/off and brightness adjustments for continuous deployment.

Indoor LED walls require minimal maintenance — periodic front cleaning with a soft brush, checking cabinet connections annually, and firmware updates. Front-access panels make servicing easier.

For broadcast or video production environments, choose displays with ≥3840 Hz refresh rate. Our fine-pitch indoor range supports up to 3840 Hz to eliminate flicker on any camera.

Yes. Many of our indoor panels support concave and convex curves. Creative format displays (cylindrical, arc, L-shape) are available in our rental and creative LED range.
