HomeProductsIndoor Fixed LED Screen GP Series

Fixed · Indoor

Indoor Fixed LED Screen GP Series

Pixel pitch: P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4

Module size: 320*160mm

Pixel pitch: P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4 Module size: 320*160mm Cabinet size: 640mm*480mm

  • Pixel pitch: P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4
  • Module size: 320*160mm
  • Cabinet size: 640mm*480mm
Model
GP1.25 / GP1.538 / GP1.86…
Pixel Pitch
1.25mm / 1.538mm / 1.86mm…
Module Size
320*160mm
Module Resolution (dot)
256*128 / 208*104 / 172*8…
Indoor Fixed LED Screen GP Series — Cosmic View

Features

Key Highlights

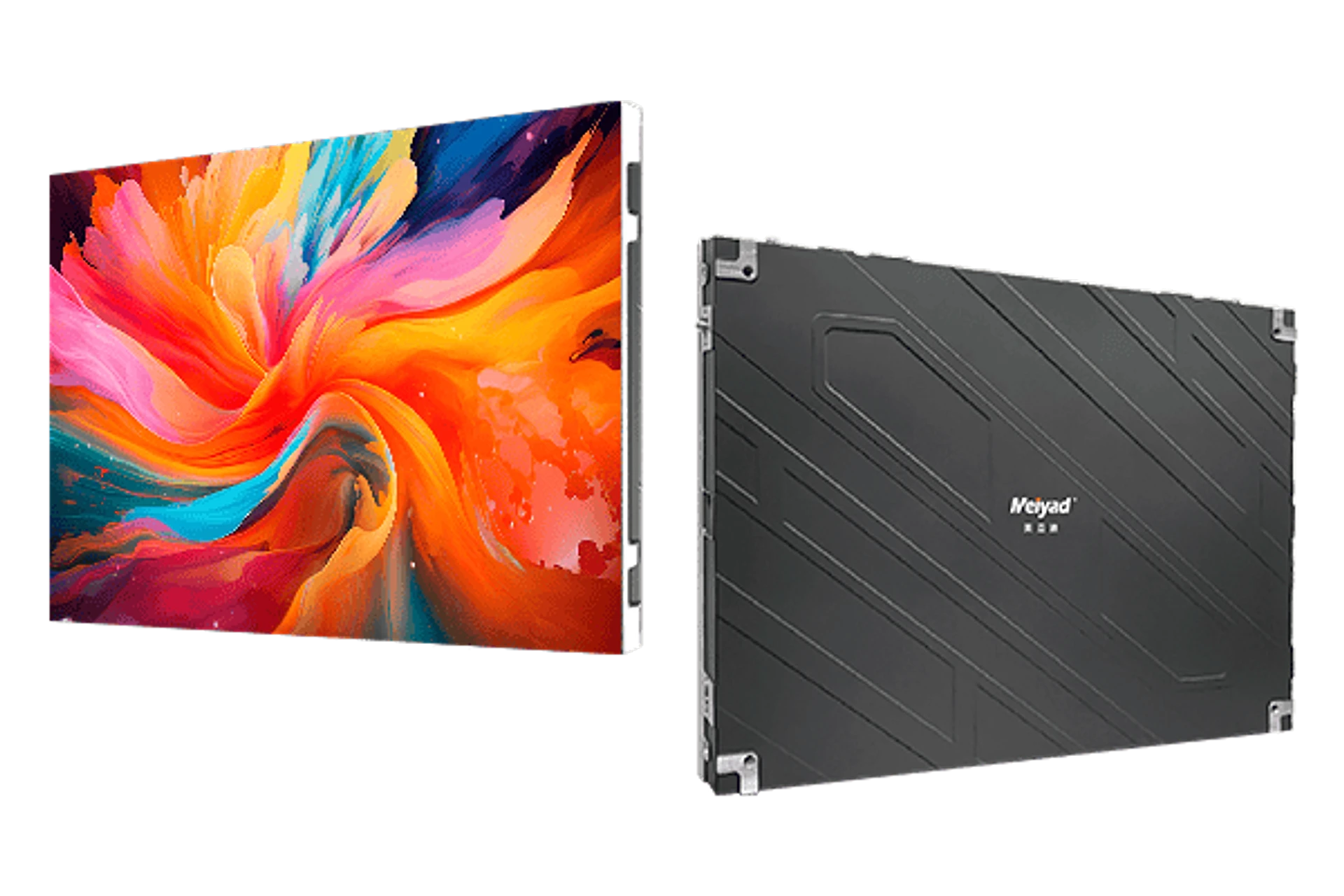

1 Indoor Fixed LED Screen GP Series- Good flatness.png
Indoor Fixed LED Screen GP Series — 1 Indoor Fixed LED Screen GP Series- Good flatness.png

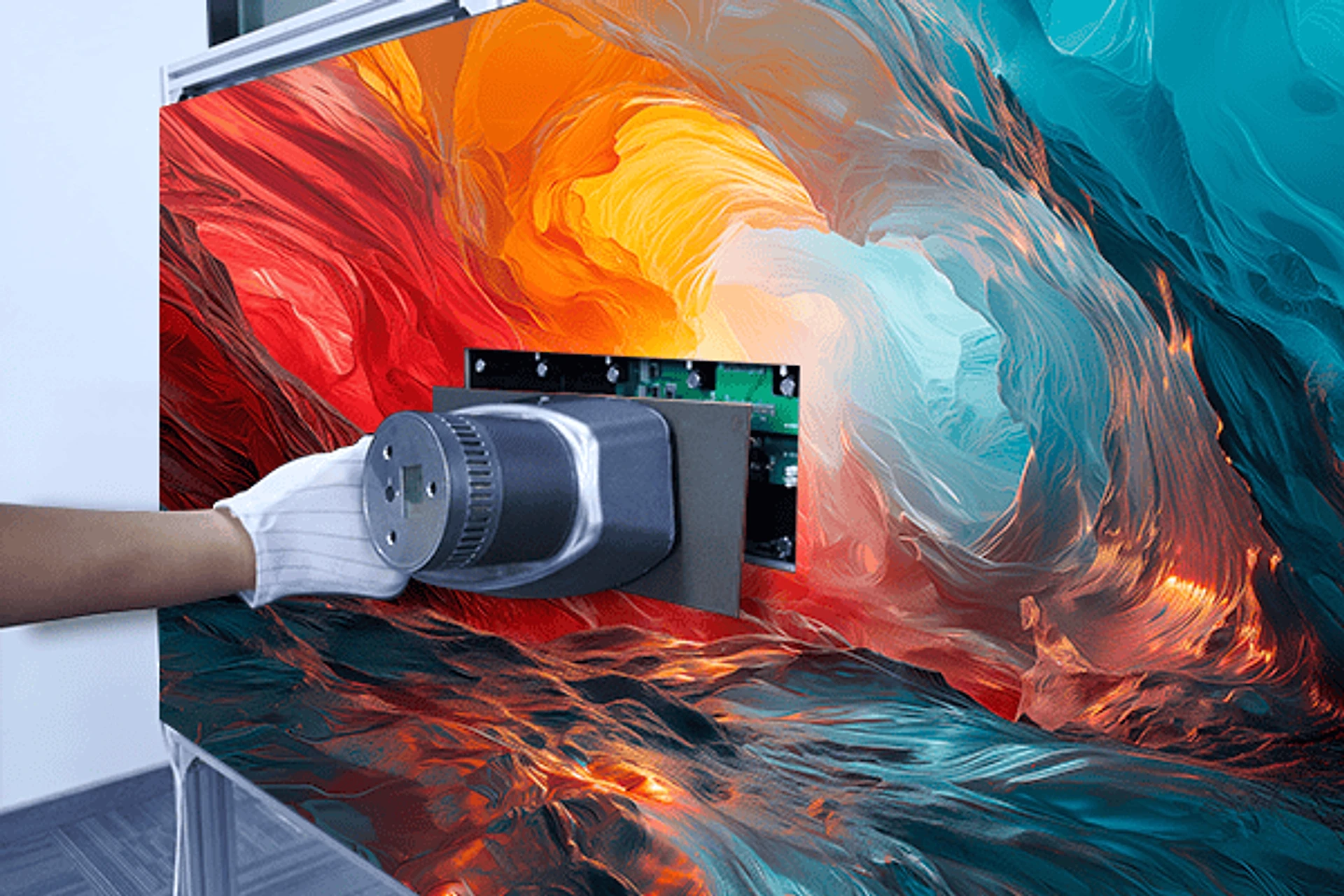

2 Indoor Fixed LED Screen GP Series-Front maintenance.png
Indoor Fixed LED Screen GP Series — 2 Indoor Fixed LED Screen GP Series-Front maintenance.png

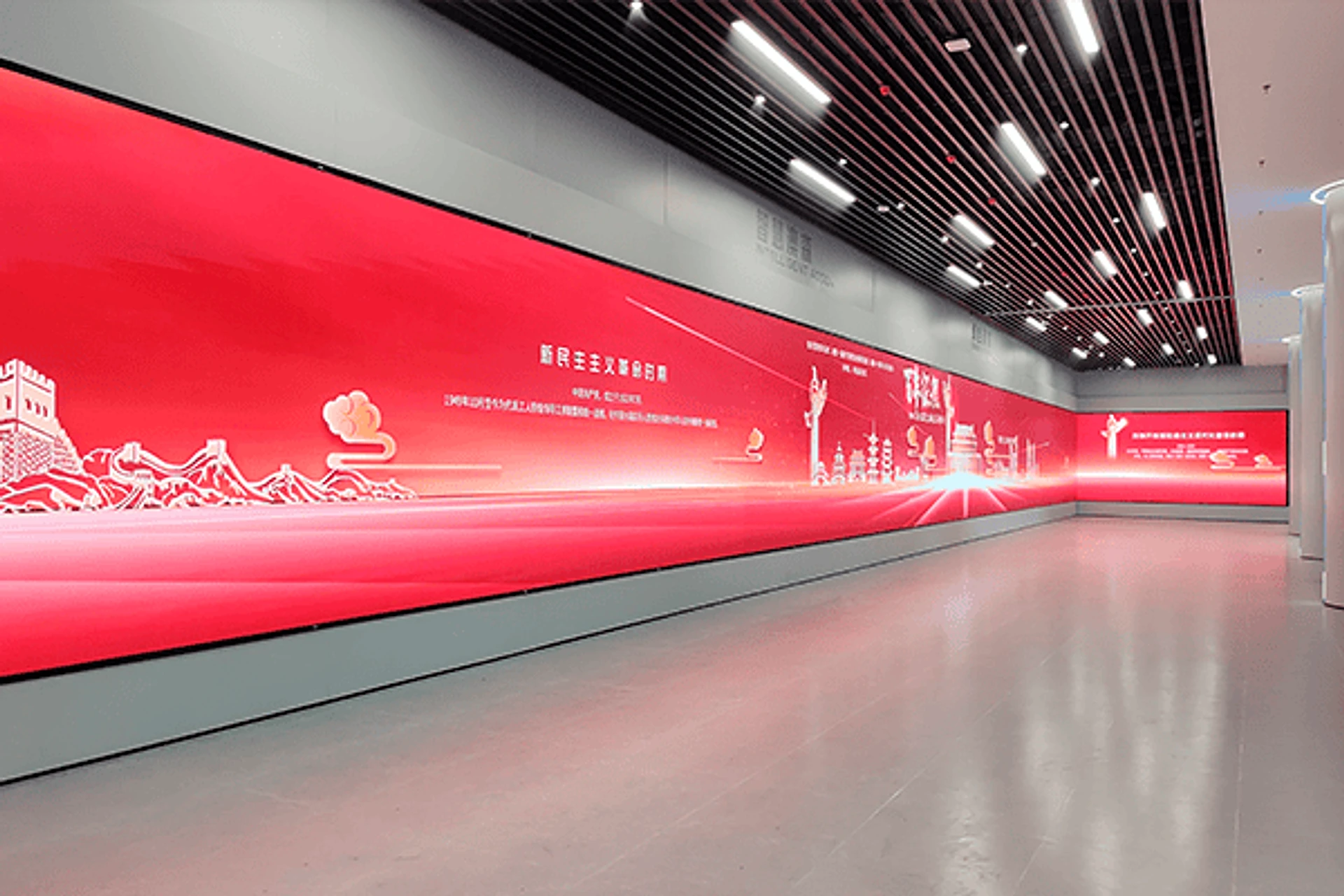

3 Indoor Fixed LED Screen GP Series-High-definition display.png
Indoor Fixed LED Screen GP Series — 3 Indoor Fixed LED Screen GP Series-High-definition display.png

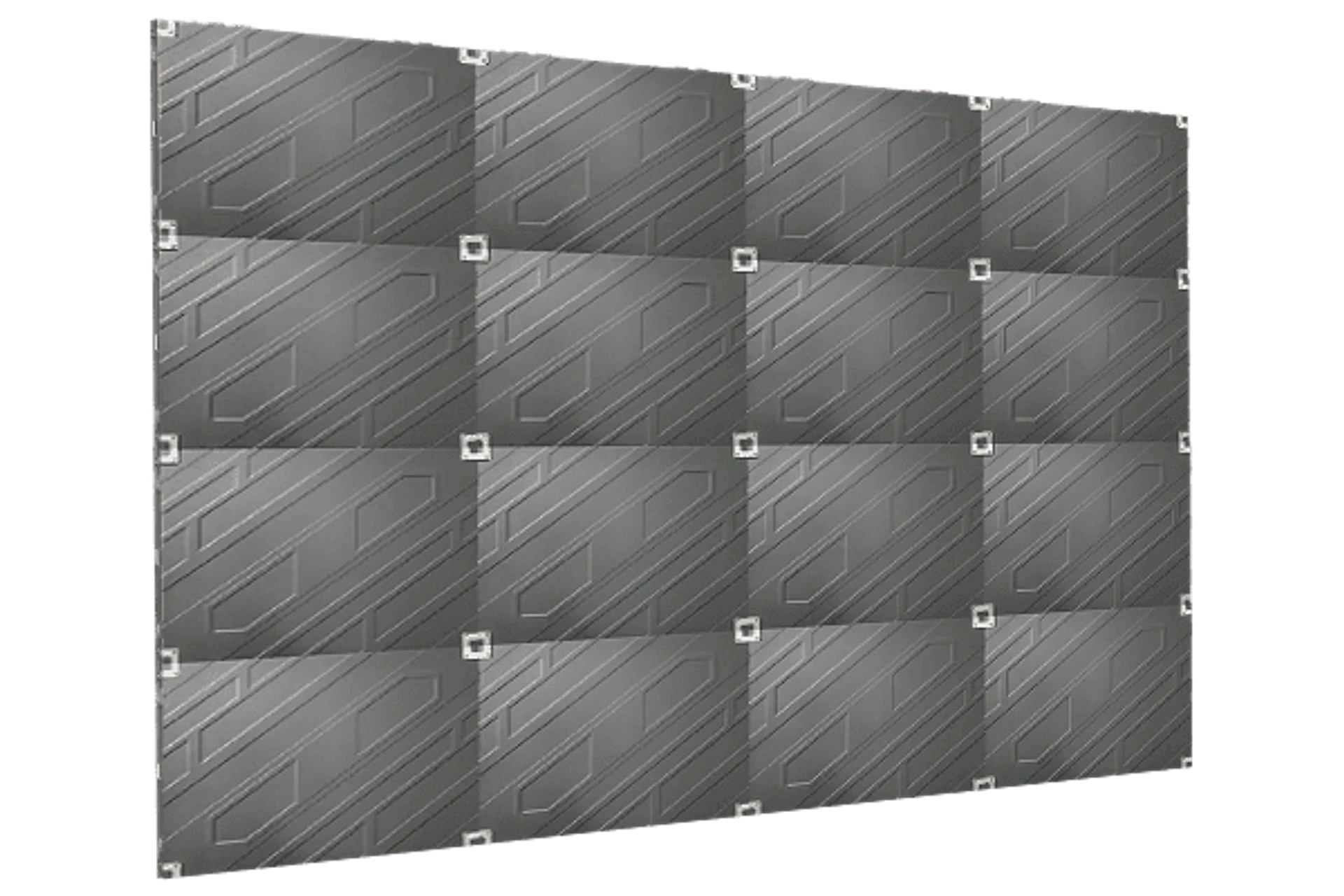

4 背部无线设计.png
Indoor Fixed LED Screen GP Series — 4 背部无线设计.png
5 Indoor Fixed LED Screen GP Series-Ultra-wide viewing angle.png
Indoor Fixed LED Screen GP Series — 5 Indoor Fixed LED Screen GP Series-Ultra-wide viewing angle.png

Application Scenarios

Indoor Fixed LED Screen GP Series in Action

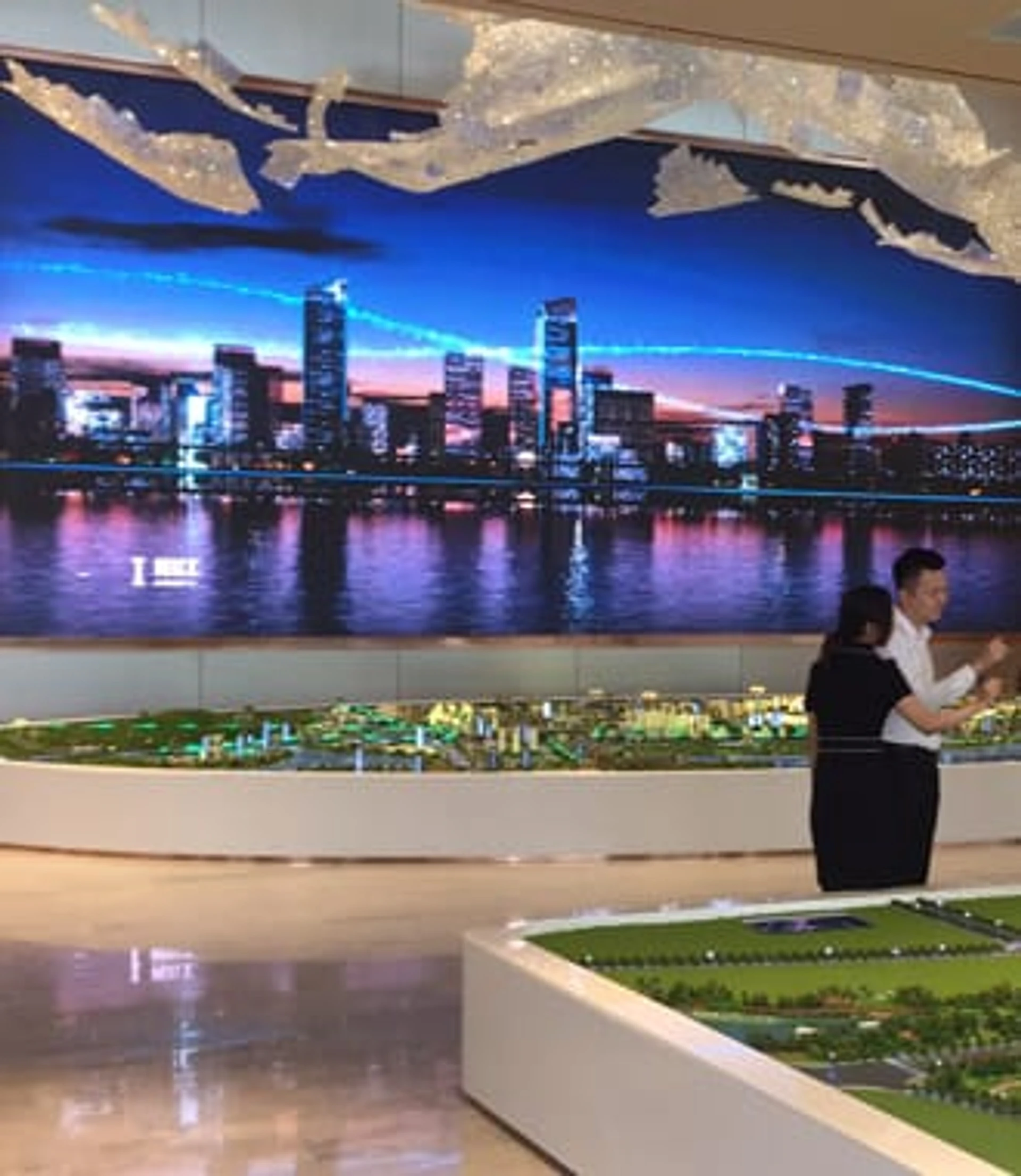

6 Application of Indoor Fixed LED Screen GP Series-Real estate.jpg

6 Application of Indoor Fixed LED Screen GP Series-Real estate.jpg

7 Application of Indoor Fixed LED Screen GP Series-Airport.jpg

7 Application of Indoor Fixed LED Screen GP Series-Airport.jpg

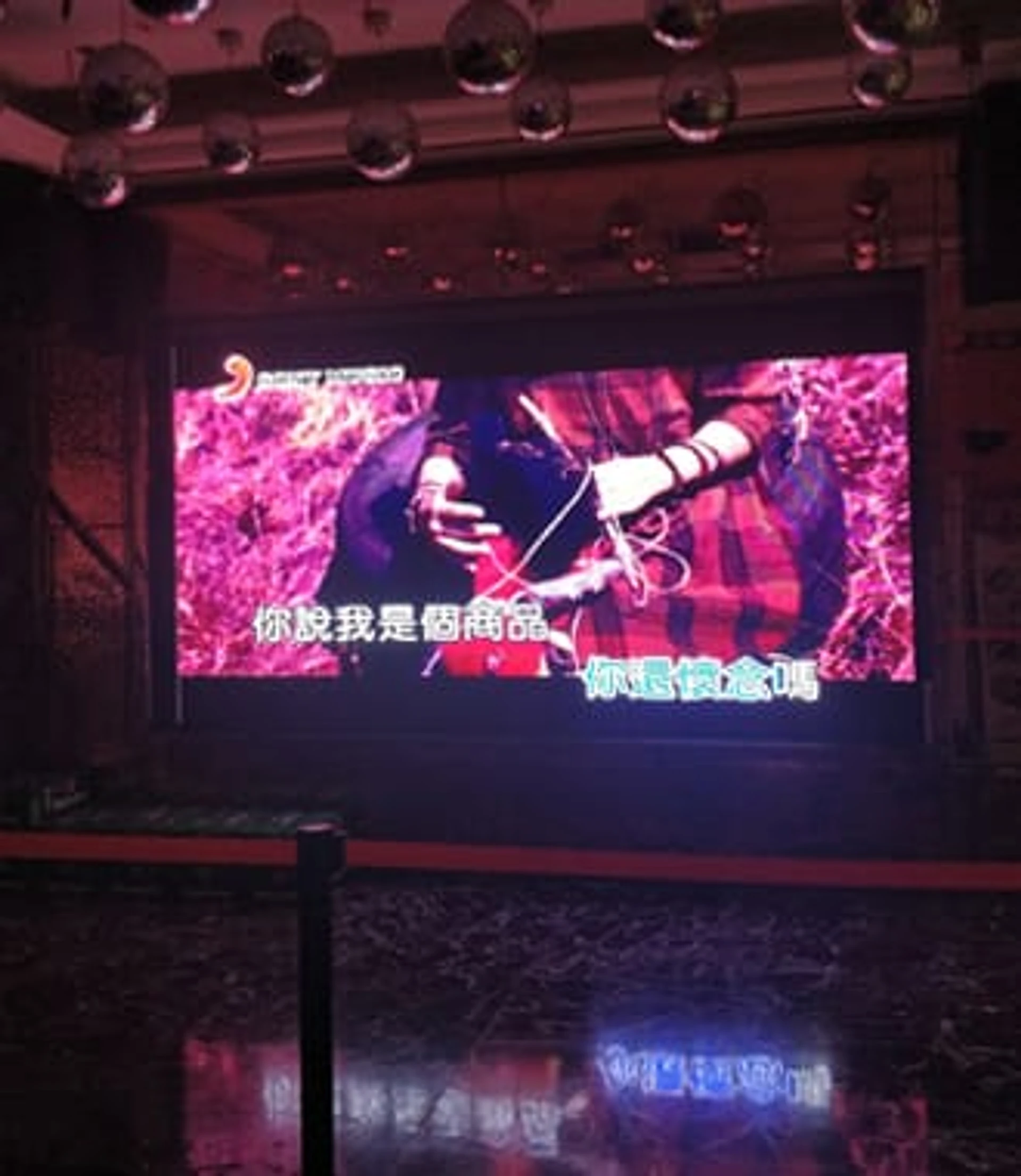

8 Application of Indoor Fixed LED Screen GP Series-KTV club.jpg

8 Application of Indoor Fixed LED Screen GP Series-KTV club.jpg

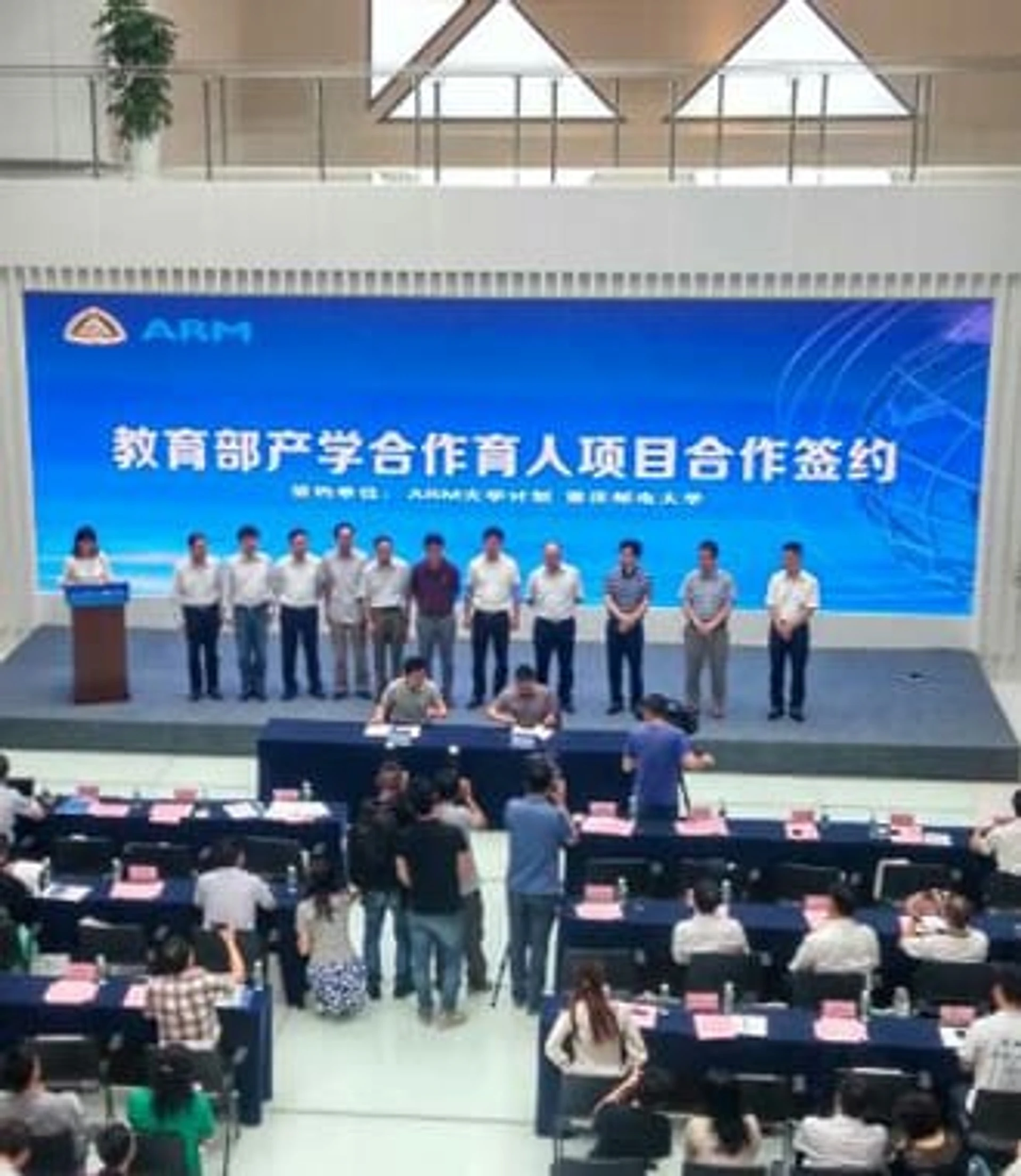

9 Application of Indoor Fixed LED Screen GP Series-School multi-purpose hall.jpg

9 Application of Indoor Fixed LED Screen GP Series-School multi-purpose hall.jpg

Specifications

Technical Specifications

ModelGP1.25 / GP1.538 / GP1.86 / GP2 / GP2.5 / GP3.076 / GP4
Pixel Pitch1.25mm / 1.538mm / 1.86mm / 2mm / 2.5mm / 3.076mm / 4mm
Module Size320*160mm
Module Resolution (dot)256*128 / 208*104 / 172*86 / 160*80 / 128*64 / 104*52 / 80*40
Cabinet Size640mm*480mm
Cabinet Resolution (dot)512×384 / 416×312 / 344×258 / 320×240 / 256×192 / 208×156 / 160×120
Maintenance MethodFront maintenance

Applications

Where Indoor Fixed LED Screen GP Series Excels

Shopping MallsHotelsAirportsCorporate OfficesSports VenuesConference Centers

Get Started

Ready to Deploy Indoor Fixed LED Screen GP Series?

Contact our team for pricing, availability, and a live product demonstration in Delhi.

FAQ

Frequently Asked Questions

For conference rooms and boardrooms viewed from 2–4 m, P1.2–P1.5 is ideal. For lobbies and retail at 4–8 m, P2–P2.5 works well. Larger venues can use P3–P4. A smaller pixel pitch means higher resolution.

Indoor LED displays generally run at 800–1500 nits. Fine-pitch displays like the CVHF operate at 800–1000 nits, which is comfortable for enclosed spaces without causing eye strain.

Yes. Our indoor LED panels are rated for 100,000+ hours of operation. Control systems allow scheduled on/off and brightness adjustments for continuous deployment.

Indoor LED walls require minimal maintenance — periodic front cleaning with a soft brush, checking cabinet connections annually, and firmware updates. Front-access panels make servicing easier.

For broadcast or video production environments, choose displays with ≥3840 Hz refresh rate. Our fine-pitch indoor range supports up to 3840 Hz to eliminate flicker on any camera.

Yes. Many of our indoor panels support concave and convex curves. Creative format displays (cylindrical, arc, L-shape) are available in our rental and creative LED range.
