HomeProductsTransparent LED Screen ST Series

Transparent · Regular

Transparent LED Screen ST Series

Pixel pitch: P3.91-7.82 P7.8-7.8

Cabinet size: 500*1000mm & 1000*1000mm

Pixel pitch: P3.91-7.82 P7.8-7.8 Cabinet size: 500*1000mm & 1000*1000mm High transparency, transparency above 55%. Refresh rate ≥3840Hz, ultra-wide viewing angle, horizontal viewing angle up to 140°. Easy installation and maintenance, super silent power supply.

  • Pixel pitch: P3.91-7.82 P7.8-7.8
  • Cabinet size: 500*1000mm & 1000*1000mm
  • High transparency, transparency above 55%. Refresh rate ≥3840Hz, ultra-wide viewing angle, horizontal viewing angle up t
Pixel Pitch
P3.91-7.82 / P3.91-7.82 /…
Application
Indoor / / Outdoor /
Module Size
500*125mm / / /
Module Resolution (dot)
128*16 / 128*16 / 128*16 …
Transparent LED Screen ST Series — Cosmic View

Features

Key Highlights

1 Transparent LED screen ST series is high transparency.png
Transparent LED Screen ST Series — 1 Transparent LED screen ST series is high transparency.png

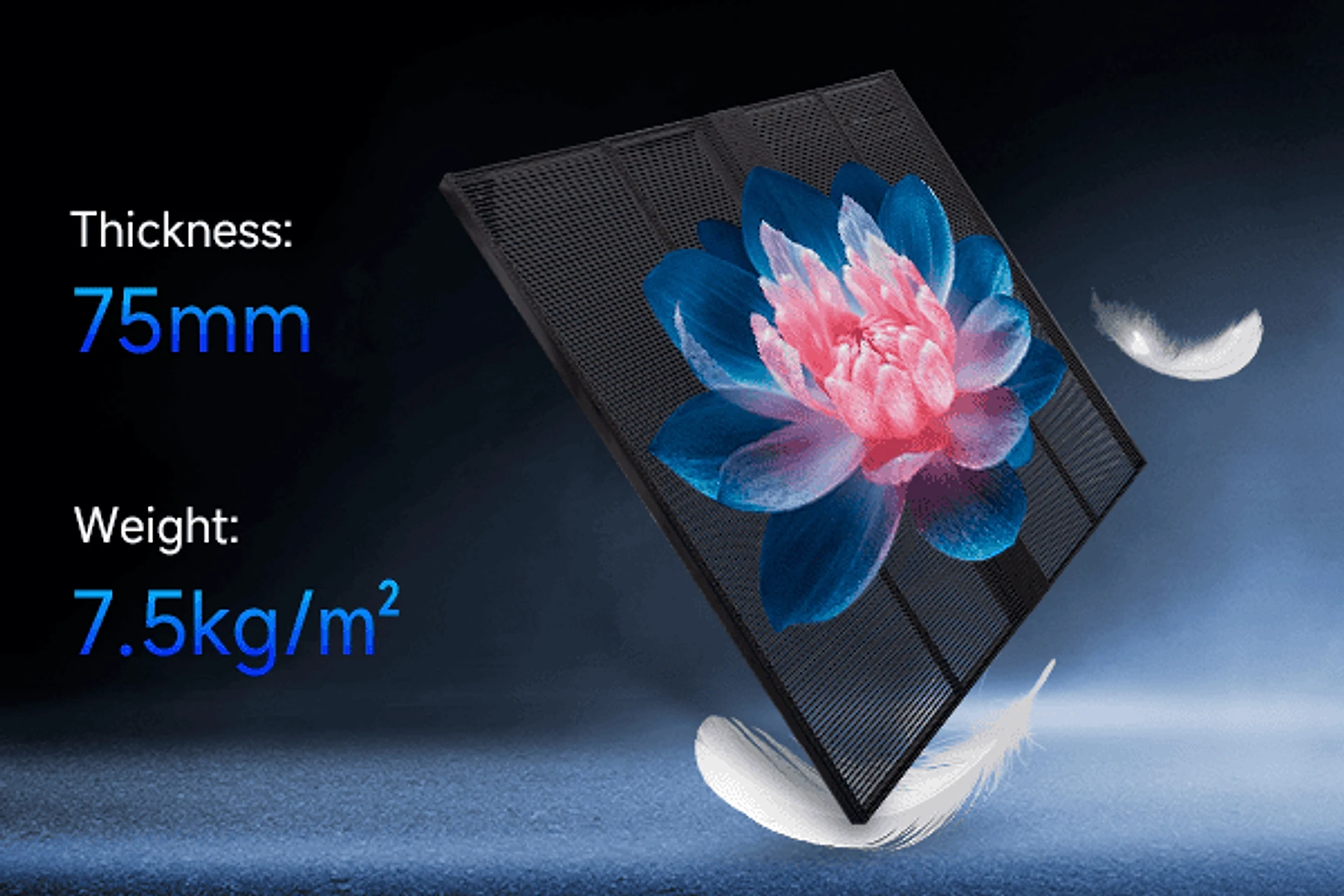

2 Transparent LED screen ST series is Ultra-light and ultra-thin.png
Transparent LED Screen ST Series — 2 Transparent LED screen ST series is Ultra-light and ultra-thin.png

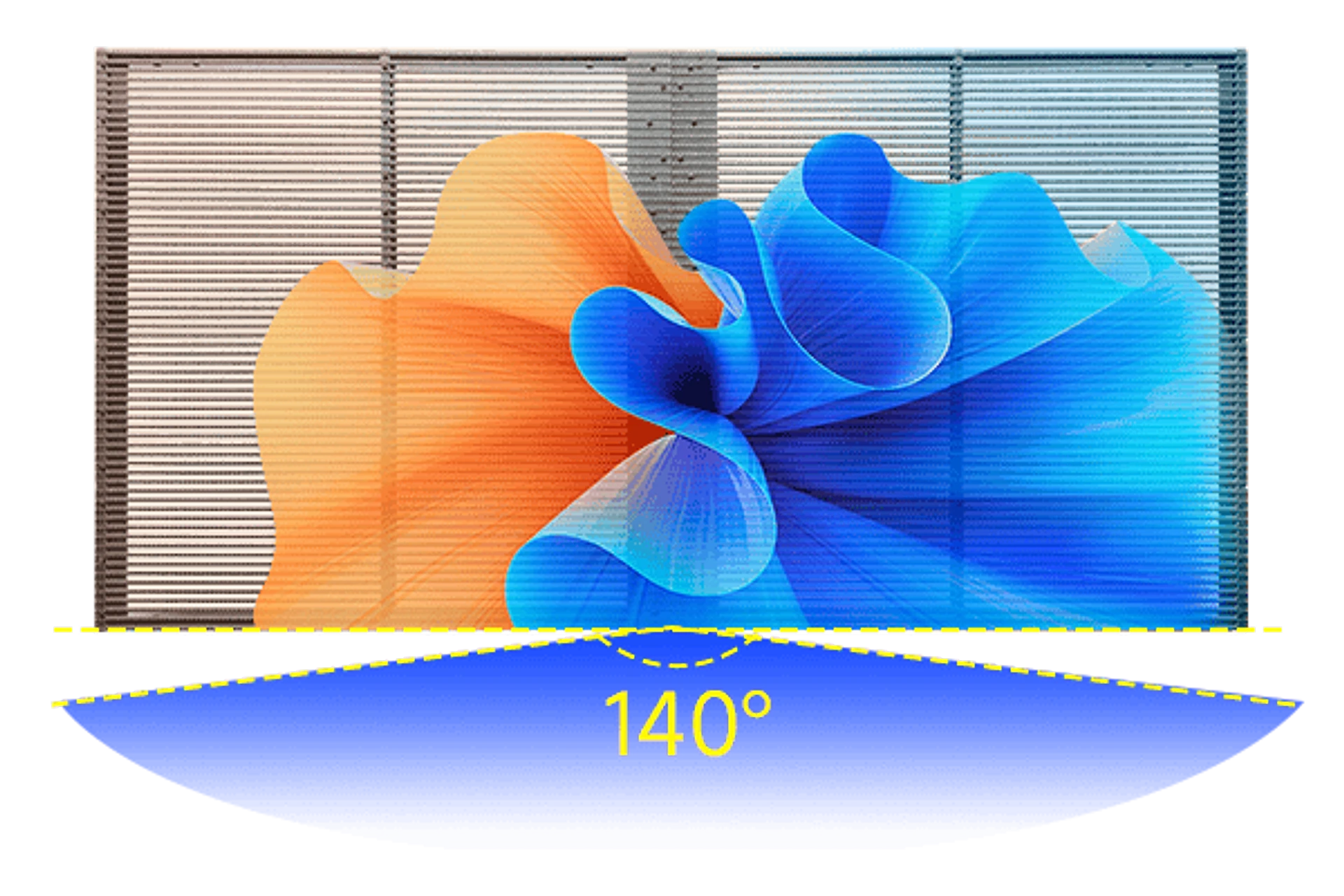

3 Transparent LED screen ST series has Ultra-wide viewing angle.png
Transparent LED Screen ST Series — 3 Transparent LED screen ST series has Ultra-wide viewing angle.png

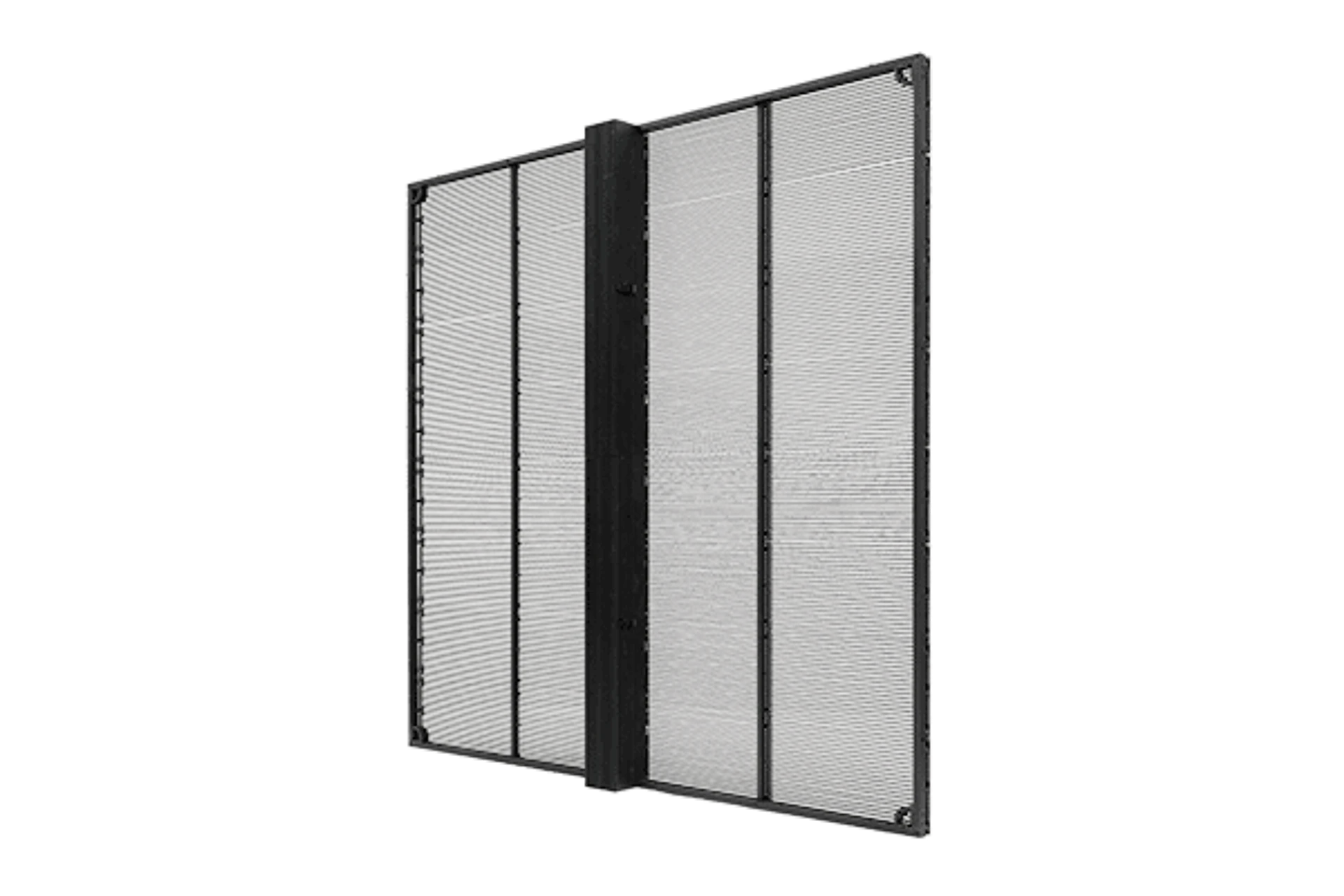

4 Transparent LED screen ST series - Easy installation and cost saving
Transparent LED Screen ST Series — 4 Transparent LED screen ST series - Easy installation and cost saving
6 Application of transparent LED screen-Shopping malls.jpg
Transparent LED Screen ST Series — 6 Application of transparent LED screen-Shopping malls.jpg

Application Scenarios

Transparent LED Screen ST Series in Action

6 Application of transparent LED screen-Shopping malls.jpg

6 Application of transparent LED screen-Shopping malls.jpg

7 Application of transparent LED screen-Glass display windows.jpg

7 Application of transparent LED screen-Glass display windows.jpg

8 Application of transparent LED screen-Glass display windows-Glass display windows.jpg

8 Application of transparent LED screen-Glass display windows-Glass display windows.jpg

9 Application of transparent LED screen-Commercial displays.jpg

9 Application of transparent LED screen-Commercial displays.jpg

Specifications

Technical Specifications

Pixel PitchP3.91-7.82 / P3.91-7.82 / P3.91-7.82 / P7.8-7.8
ApplicationIndoor / / Outdoor /
Module Size500*125mm / / /
Module Resolution (dot)128*16 / 128*16 / 128*16 / 64*16
Cabinet Size500*1000mm / 1000*1000mm / 500*1000mm / 500*1000mm
Cabinet Resolution (dot)265*64 / 256*128 / 265*64 / 128*64
Maintenance MethodFront maintenance / rear maintenance / front and rear maintenance (customizable according to project)

Applications

Where Transparent LED Screen ST Series Excels

Retail StoresShow WindowsLobbiesGlass FacadesFlagship StoresMuseums

Get Started

Ready to Deploy Transparent LED Screen ST Series?

Contact our team for pricing, availability, and a live product demonstration in Delhi.

FAQ

Frequently Asked Questions

For conference rooms and boardrooms viewed from 2–4 m, P1.2–P1.5 is ideal. For lobbies and retail at 4–8 m, P2–P2.5 works well. Larger venues can use P3–P4. A smaller pixel pitch means higher resolution.

Indoor LED displays generally run at 800–1500 nits. Fine-pitch displays like the CVHF operate at 800–1000 nits, which is comfortable for enclosed spaces without causing eye strain.

Yes. Our indoor LED panels are rated for 100,000+ hours of operation. Control systems allow scheduled on/off and brightness adjustments for continuous deployment.

Indoor LED walls require minimal maintenance — periodic front cleaning with a soft brush, checking cabinet connections annually, and firmware updates. Front-access panels make servicing easier.

For broadcast or video production environments, choose displays with ≥3840 Hz refresh rate. Our fine-pitch indoor range supports up to 3840 Hz to eliminate flicker on any camera.

Yes. Many of our indoor panels support concave and convex curves. Creative format displays (cylindrical, arc, L-shape) are available in our rental and creative LED range.
