Home›Products›Fine Pitch XG Series

Fine Pitch · Indoor

Fine Pitch XG Series

Pixel pitch: P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4

Cabinet size: 640*480mm

Pixel pitch: P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4 Cabinet size: 640*480mm Die-cast aluminum cabinet, CNC to ensure accuracy. Low brightness and high grayscale, fine picture quality, high contrast.

  • Pixel pitch: P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4
  • Cabinet size: 640*480mm
  • Die-cast aluminum cabinet, CNC to ensure accuracy. Low brightness and high grayscale, fine picture quality, high contras
Model
XG1.25 / XG1.538 / XG1.86…
Pixel Pitch
1.25mm / 1.538mm / 1.86mm…
Module Size
320*160mm
Module Resolution (dot)
256*128 / 208*104 / 172*8…
Get Inquiry → ← All Products
Fine Pitch XG Series — Cosmic View

Features

Key Highlights

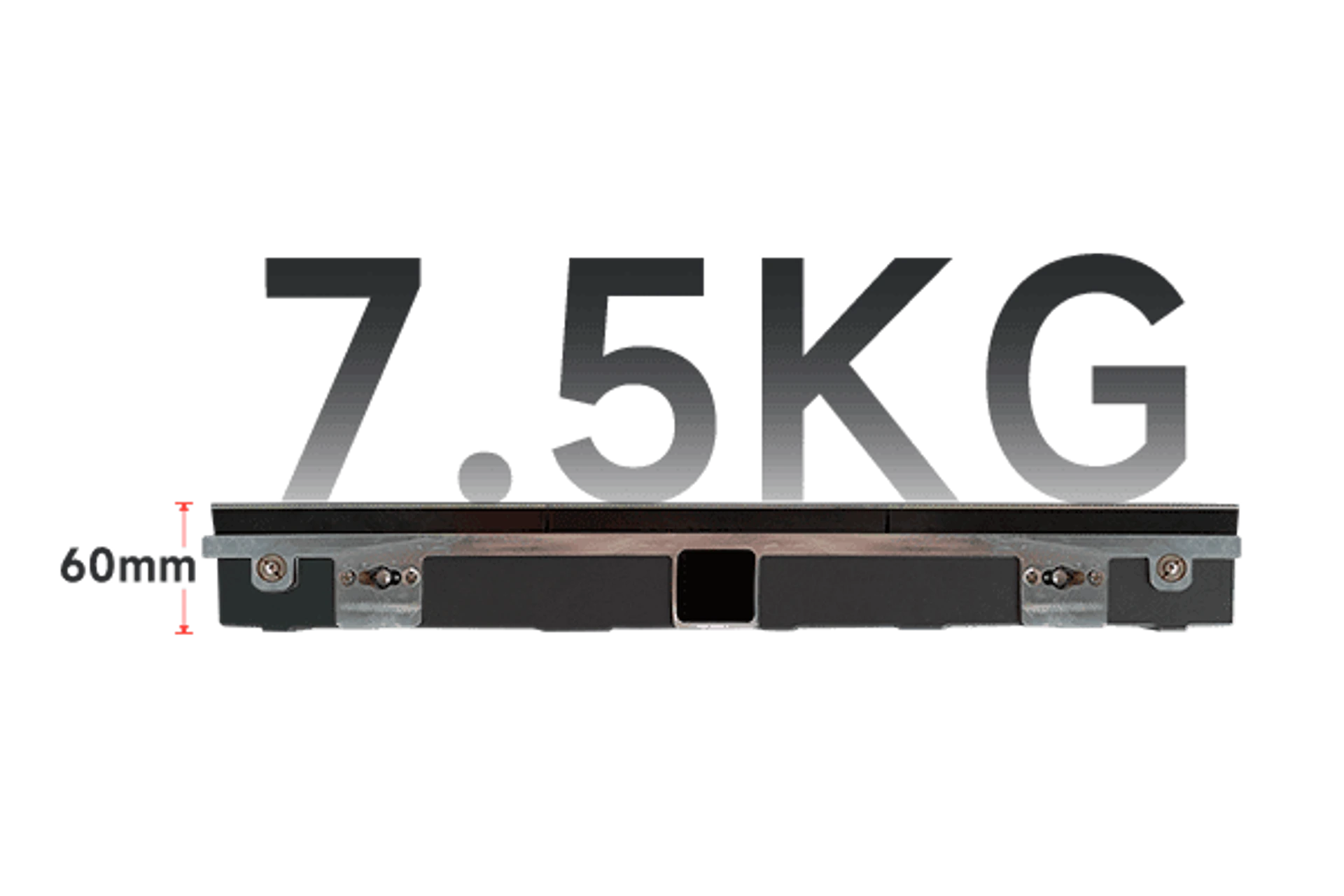

1 Fine pitch LED screen XG series cabinet weight 7.5kg, thickness is
Fine Pitch XG Series — 1 Fine pitch LED screen XG series cabinet weight 7.5kg, thickness is

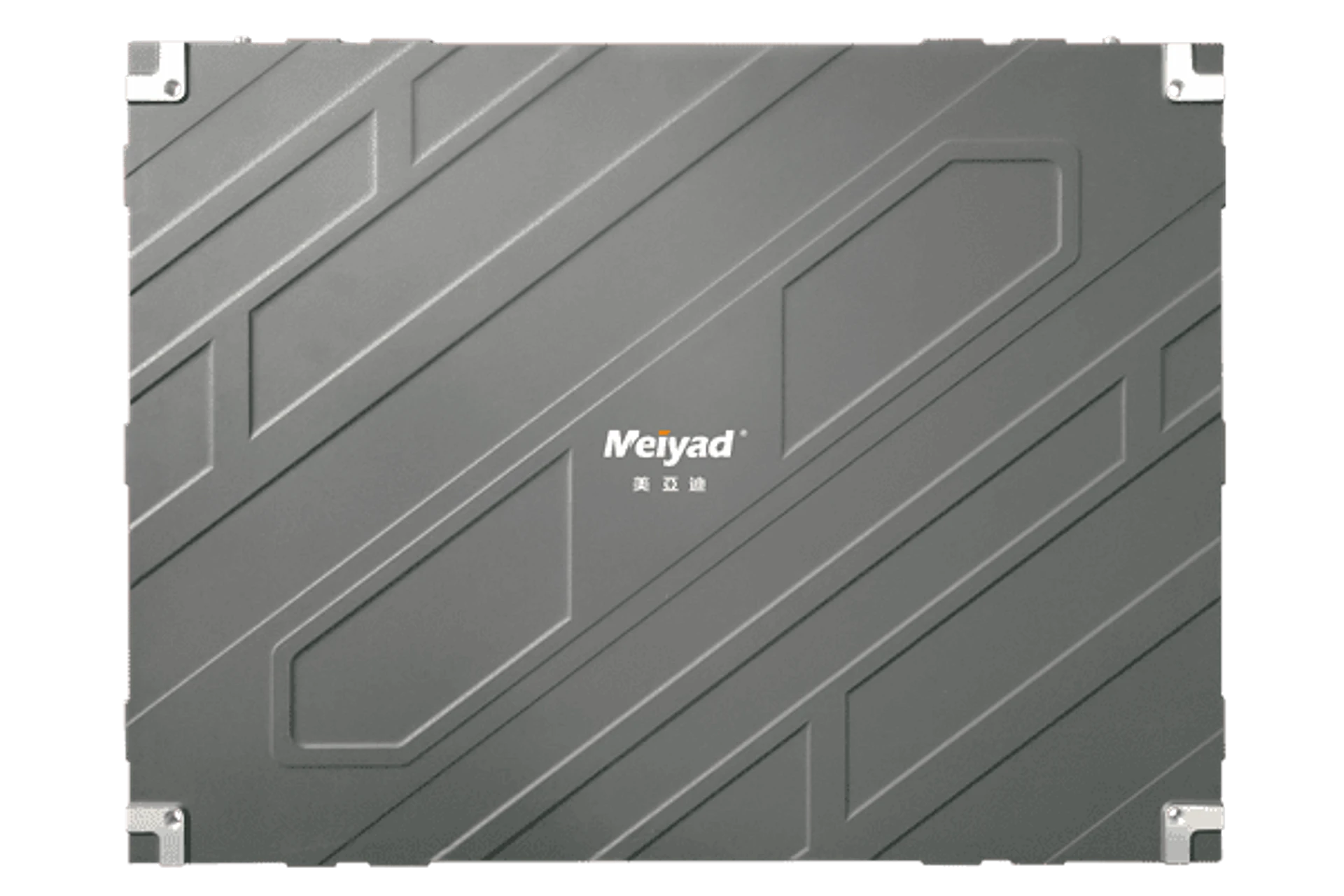

2 Fine pitch LED screen XG series is Die-cast Aluminum Cabinet.png
Fine Pitch XG Series — 2 Fine pitch LED screen XG series is Die-cast Aluminum Cabinet.png

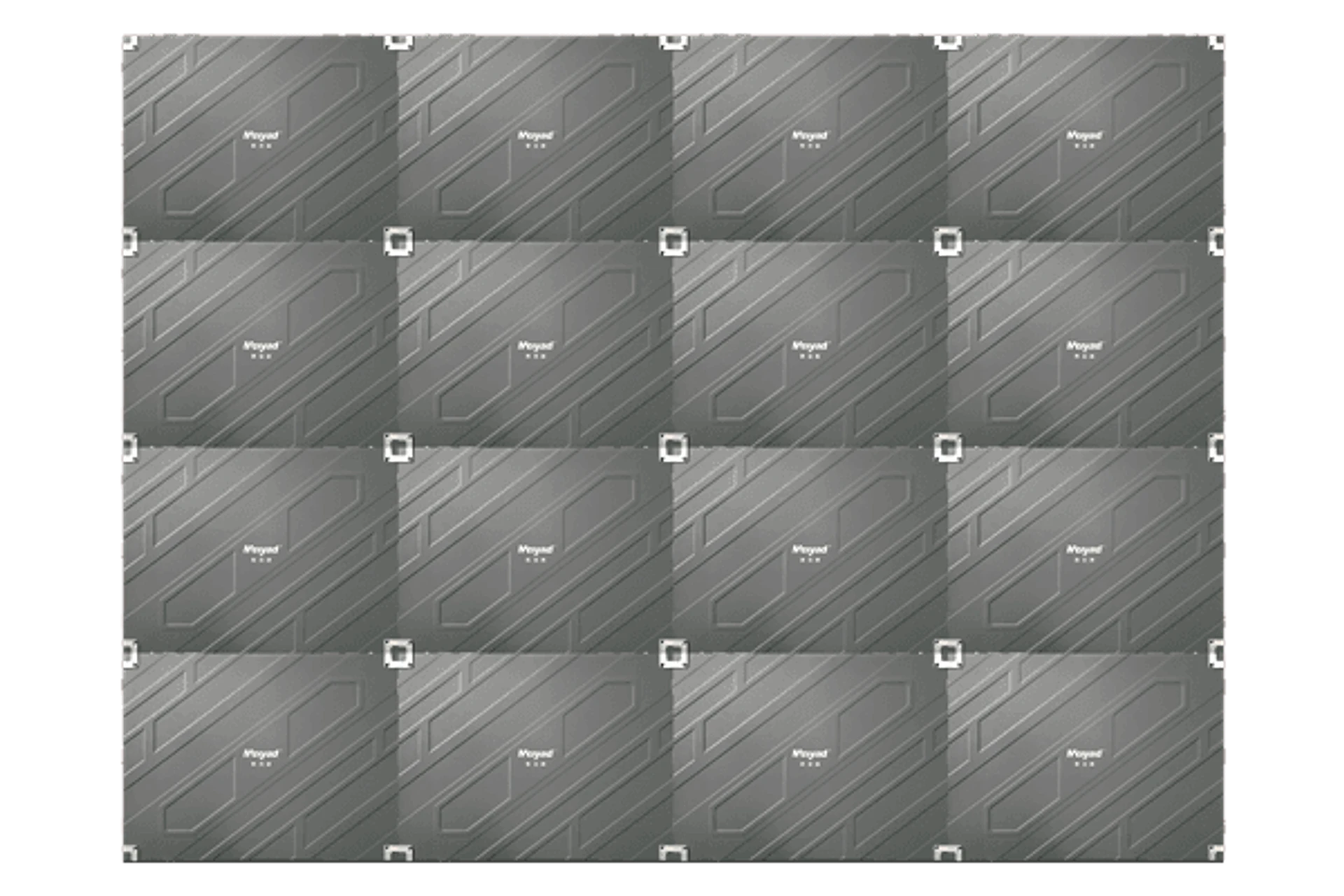

3 Fine pitch LED screen XG series with Power Supply Dual Backup.png
Fine Pitch XG Series — 3 Fine pitch LED screen XG series with Power Supply Dual Backup.png

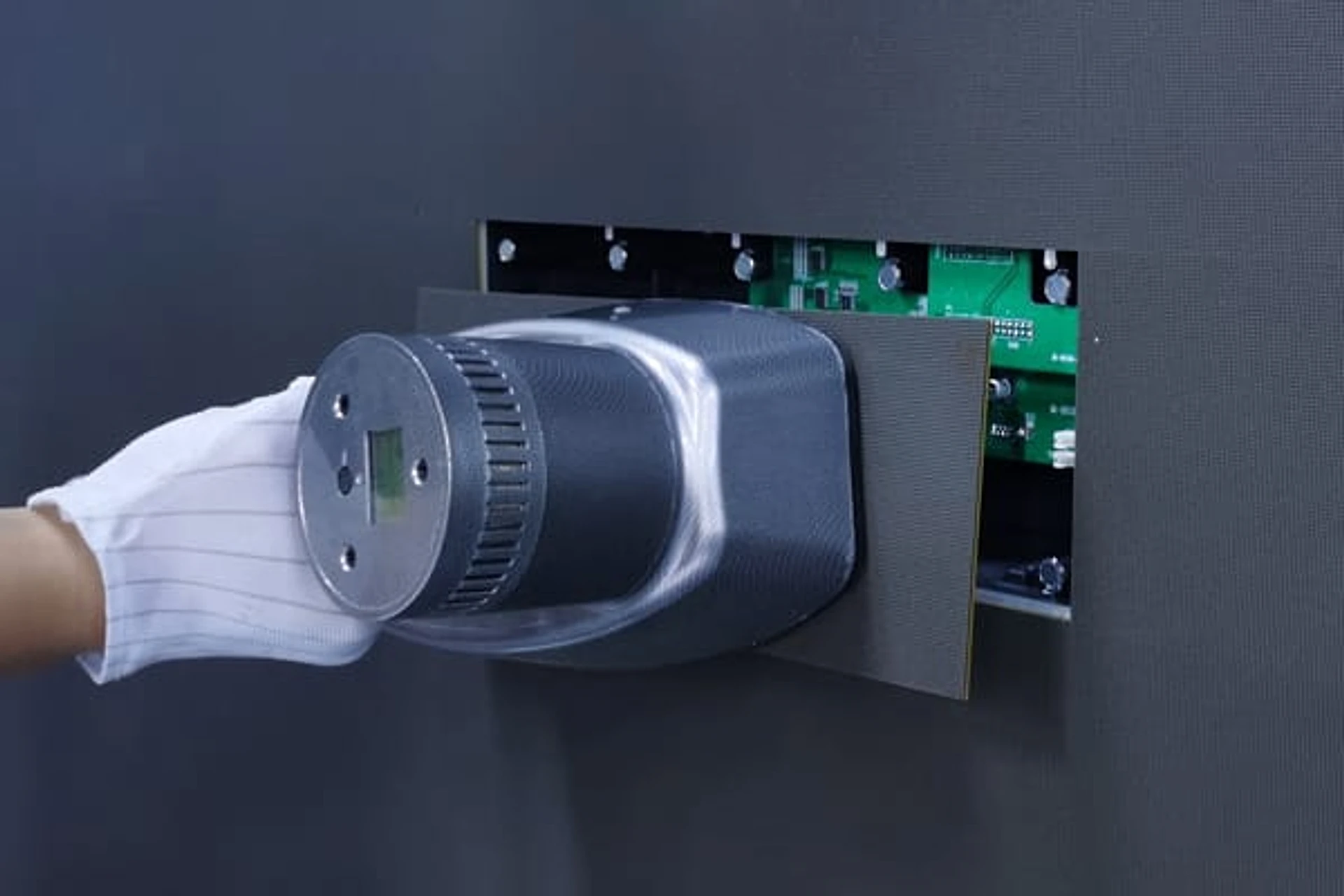

4 Fine pitch LED screen XG series with Front Maintenance.jpg
Fine Pitch XG Series — 4 Fine pitch LED screen XG series with Front Maintenance.jpg
5 Fine pitch LED Screen XG series is Low brightness, high grayscale, h
Fine Pitch XG Series — 5 Fine pitch LED Screen XG series is Low brightness, high grayscale, h

Application Scenarios

Fine Pitch XG Series in Action

6 application of fine pitch led screen-Flagship store.jpg

6 application of fine pitch led screen-Flagship store.jpg

7 application of fine pitch led screen-Meeting room.jpg

7 application of fine pitch led screen-Meeting room.jpg

8 application of fine pitch led screen-Monitoring command center.jpg

8 application of fine pitch led screen-Monitoring command center.jpg

9 application of fine pitch led screen-Lobby.jpg

9 application of fine pitch led screen-Lobby.jpg

Specifications

Technical Specifications

ModelXG1.25 / XG1.538 / XG1.86 / XG2 / XG2.5 / XG3.076 / XG4
Pixel Pitch1.25mm / 1.538mm / 1.86mm / 2mm / 2.5mm / 3.076mm / 4mm
Module Size320*160mm
Module Resolution (dot)256*128 / 208*104 / 172*86 / 160*80 / 128*64 / 104*52 / 80*40
Cabinet Size640*480mm
Cabinet Resolution (dot)512*384 / 416*312 / 344*258 / 320*240 / 256*192 / 208*156 / 160*120
Maintenance MethodFront maintenance

Applications

Where Fine Pitch XG Series Excels

Control RoomsConference RoomsHotelsRetail StoresBroadcast StudiosCorporate Offices

Get Started

Ready to Deploy Fine Pitch XG Series?

Contact our team for pricing, availability, and a live product demonstration in Delhi.

Request a Quote → WhatsApp Us

FAQ

Frequently Asked Questions

For conference rooms and boardrooms viewed from 2–4 m, P1.2–P1.5 is ideal. For lobbies and retail at 4–8 m, P2–P2.5 works well. Larger venues can use P3–P4. A smaller pixel pitch means higher resolution.

Indoor LED displays generally run at 800–1500 nits. Fine-pitch displays like the CVHF operate at 800–1000 nits, which is comfortable for enclosed spaces without causing eye strain.

Yes. Our indoor LED panels are rated for 100,000+ hours of operation. Control systems allow scheduled on/off and brightness adjustments for continuous deployment.

Indoor LED walls require minimal maintenance — periodic front cleaning with a soft brush, checking cabinet connections annually, and firmware updates. Front-access panels make servicing easier.

For broadcast or video production environments, choose displays with ≥3840 Hz refresh rate. Our fine-pitch indoor range supports up to 3840 Hz to eliminate flicker on any camera.

Yes. Many of our indoor panels support concave and convex curves. Creative format displays (cylindrical, arc, L-shape) are available in our rental and creative LED range.
