Home›Products›Fine Pitch XS Series

Fine Pitch · Indoor

Fine Pitch XS Series

Pixel pitch: P1.267 P1.461 P1.58 P1.9

Cabinet size: 608mm*342mm

Pixel pitch: P1.267 P1.461 P1.58 P1.9 Cabinet size: 608mm*342mm HUB wireless connection, ultra-light and ultra-thin, quick and easy installation. Low brightness and high gray, fine image quality.

  • Pixel pitch: P1.267 P1.461 P1.58 P1.9
  • Cabinet size: 608mm*342mm
  • HUB wireless connection, ultra-light and ultra-thin, quick and easy installation. Low brightness and high gray, fine ima
Model
XS1.267 / XS1.461 / XS1.5…
Pixel Pitch
1.267mm / 1.461mm / 1.58m…
Module Size
304*114mm
Module Resolution (dot)
240*90 / 208*78 / 192*72 …
Get Inquiry → ← All Products
Fine Pitch XS Series — Cosmic View

Features

Key Highlights

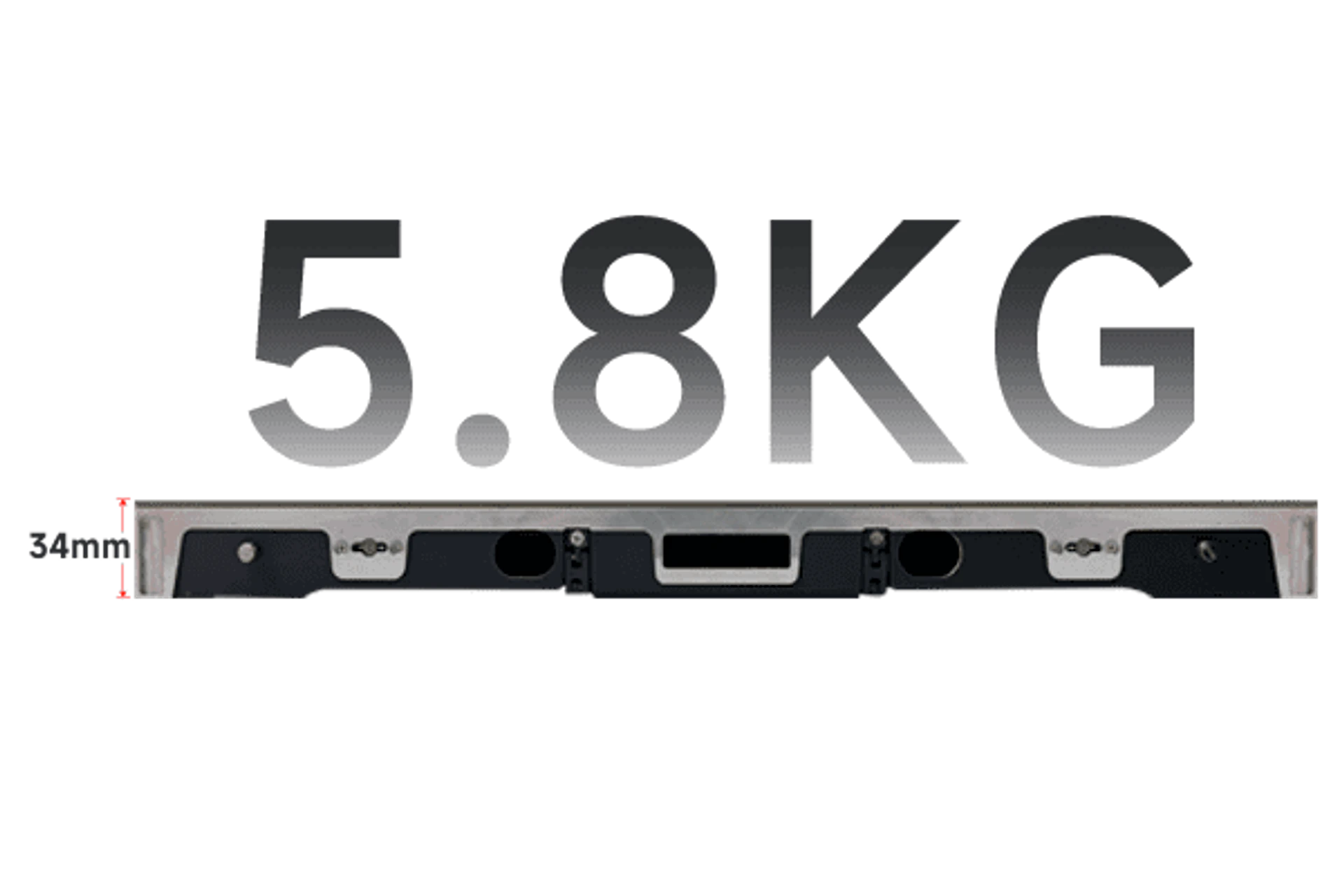

1 fine pitch led screen XS series is Ultra-thin and Light.png
Fine Pitch XS Series — 1 fine pitch led screen XS series is Ultra-thin and Light.png

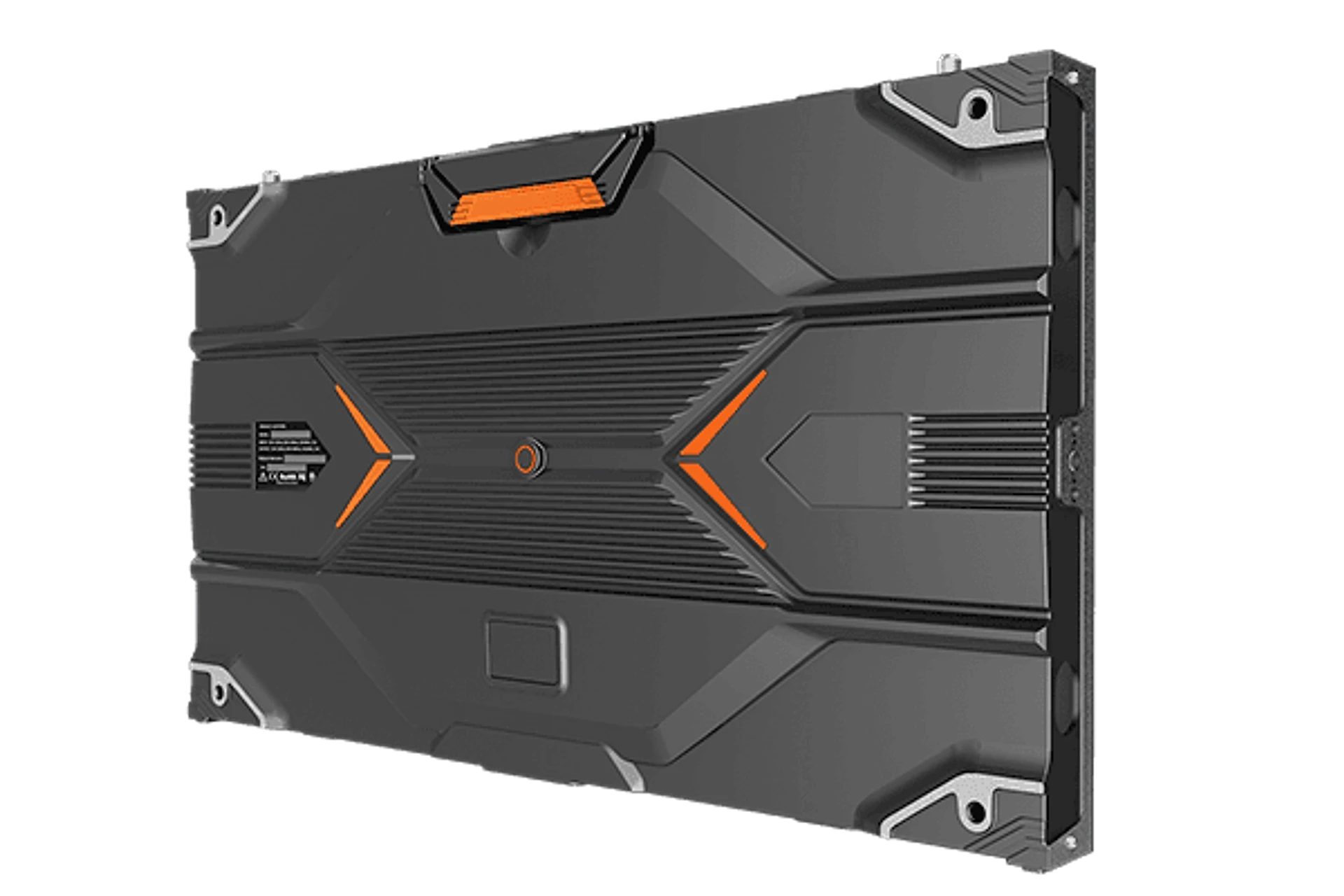

2 fine pitch led screen XS series with Die-cast Aluminum Cabinet.png
Fine Pitch XS Series — 2 fine pitch led screen XS series with Die-cast Aluminum Cabinet.png
3 fine pitch led screen XS series is Cabinet Modularly Designed.png
Fine Pitch XS Series — 3 fine pitch led screen XS series is Cabinet Modularly Designed.png

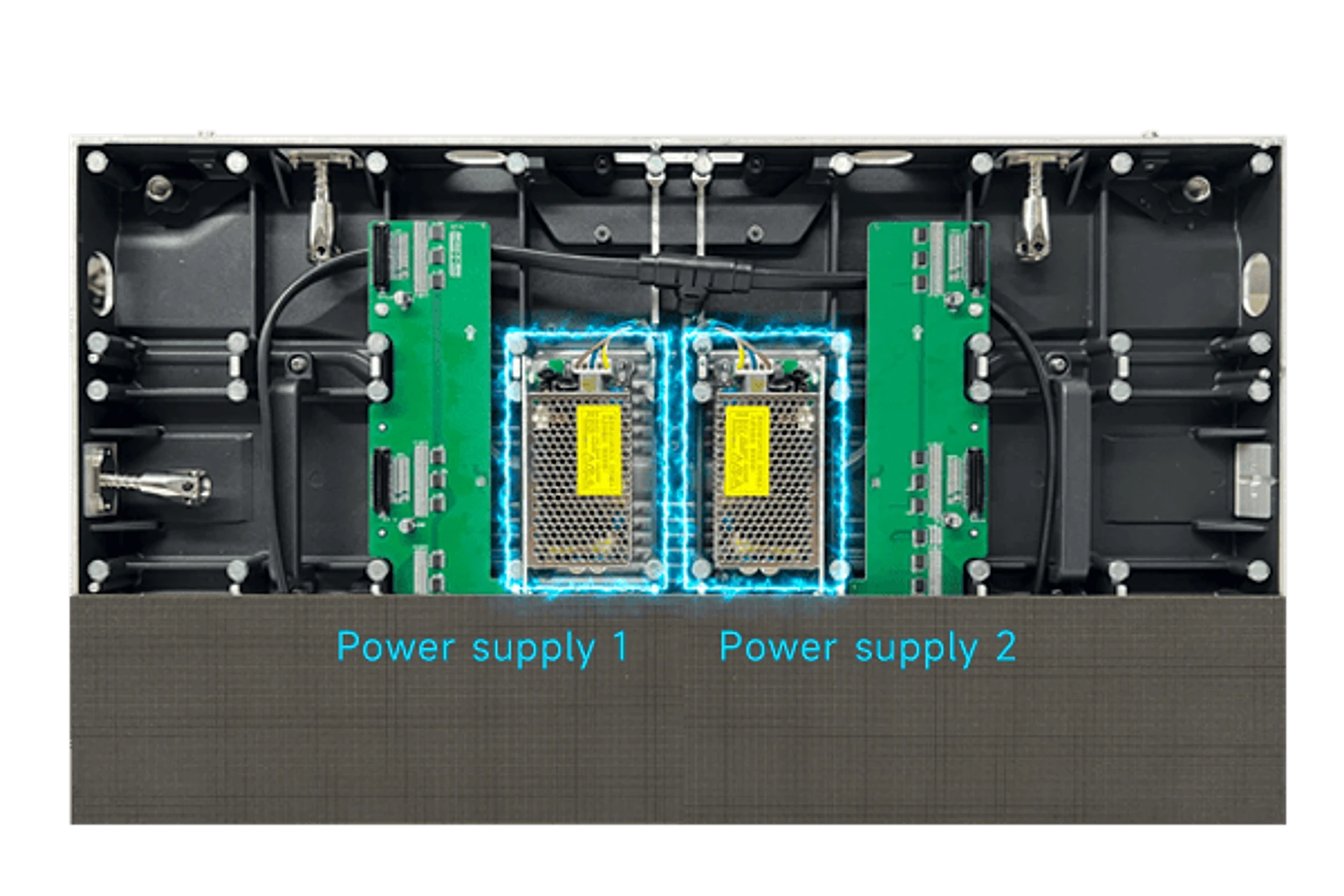

4 fine pitch led screen XS series with Power Supply Dual Backup.png
Fine Pitch XS Series — 4 fine pitch led screen XS series with Power Supply Dual Backup.png

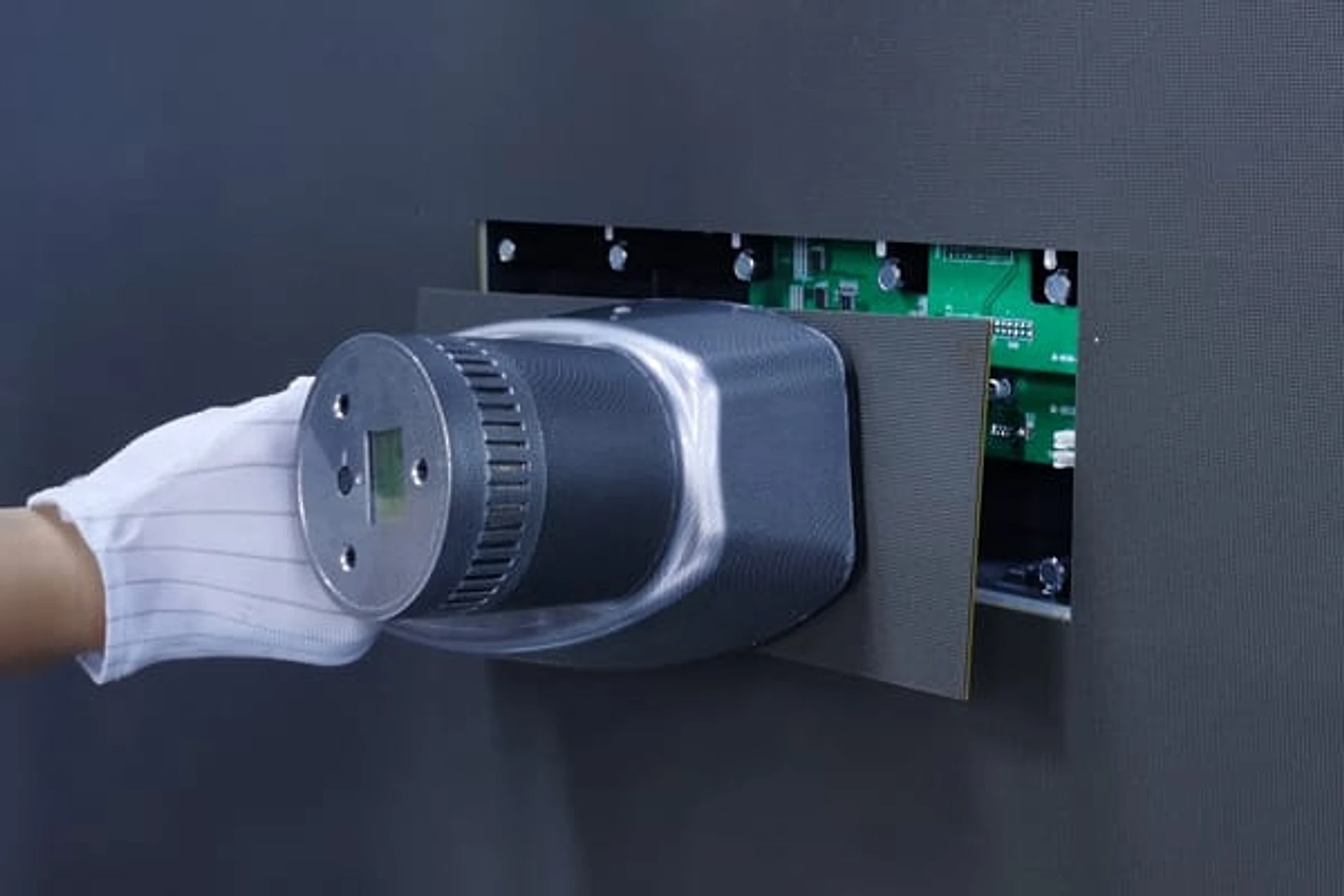

5 fine pitch led screen XS series with Front Maintenance.jpg
Fine Pitch XS Series — 5 fine pitch led screen XS series with Front Maintenance.jpg

Application Scenarios

Fine Pitch XS Series in Action

6 application of fine pitch led screen-Flagship store.jpg

6 application of fine pitch led screen-Flagship store.jpg

7 application of fine pitch led screen-Meeting room.jpg

7 application of fine pitch led screen-Meeting room.jpg

8 application of fine pitch led screen-Monitoring command center.jpg

8 application of fine pitch led screen-Monitoring command center.jpg

9 application of fine pitch led screen-Lobby.jpg

9 application of fine pitch led screen-Lobby.jpg

Specifications

Technical Specifications

ModelXS1.267 / XS1.461 / XS1.58 / XS1.9
Pixel Pitch1.267mm / 1.461mm / 1.58mm / 1.9mm
Module Size304*114mm
Module Resolution (dot)240*90 / 208*78 / 192*72 / 160*60
Cabinet Size608mm*342mm
Cabinet Resolution (dot)480*270 / 416*234 / 384*216 / 320*180
Maintenance MethodFront maintenance

Applications

Where Fine Pitch XS Series Excels

Control RoomsConference RoomsHotelsRetail StoresBroadcast StudiosCorporate Offices

Get Started

Ready to Deploy Fine Pitch XS Series?

Contact our team for pricing, availability, and a live product demonstration in Delhi.

Request a Quote → WhatsApp Us

FAQ

Frequently Asked Questions

For conference rooms and boardrooms viewed from 2–4 m, P1.2–P1.5 is ideal. For lobbies and retail at 4–8 m, P2–P2.5 works well. Larger venues can use P3–P4. A smaller pixel pitch means higher resolution.

Indoor LED displays generally run at 800–1500 nits. Fine-pitch displays like the CVHF operate at 800–1000 nits, which is comfortable for enclosed spaces without causing eye strain.

Yes. Our indoor LED panels are rated for 100,000+ hours of operation. Control systems allow scheduled on/off and brightness adjustments for continuous deployment.

Indoor LED walls require minimal maintenance — periodic front cleaning with a soft brush, checking cabinet connections annually, and firmware updates. Front-access panels make servicing easier.

For broadcast or video production environments, choose displays with ≥3840 Hz refresh rate. Our fine-pitch indoor range supports up to 3840 Hz to eliminate flicker on any camera.

Yes. Many of our indoor panels support concave and convex curves. Creative format displays (cylindrical, arc, L-shape) are available in our rental and creative LED range.
